MAXIMUM TECHNOLOGY PTC Product Information

PTDD03N2-2R5M160

■ Fluctuating current protection range

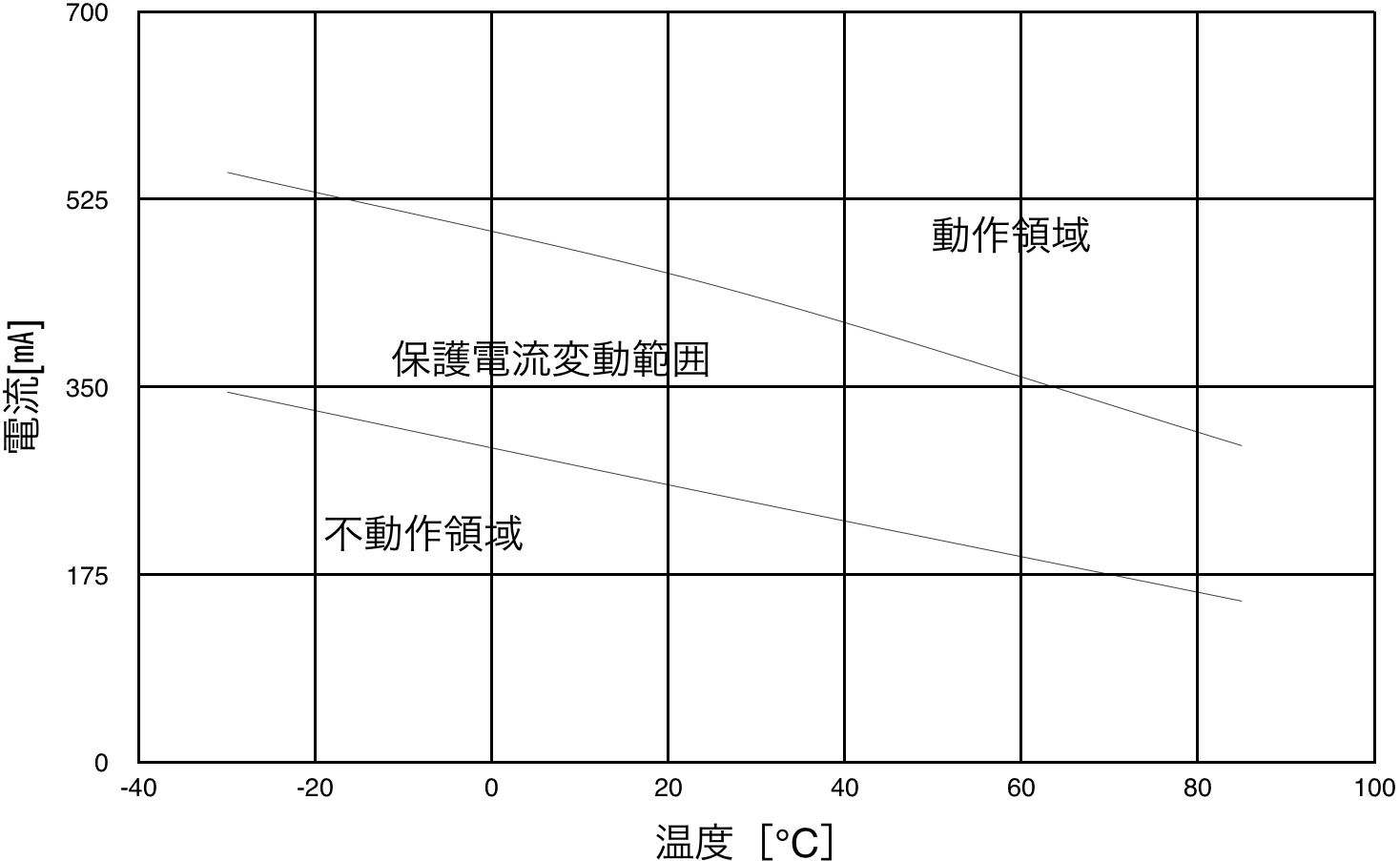

PTDD03N2-2R5M160 Fluctuating current protection range

■ Operating time characteristics (typical)

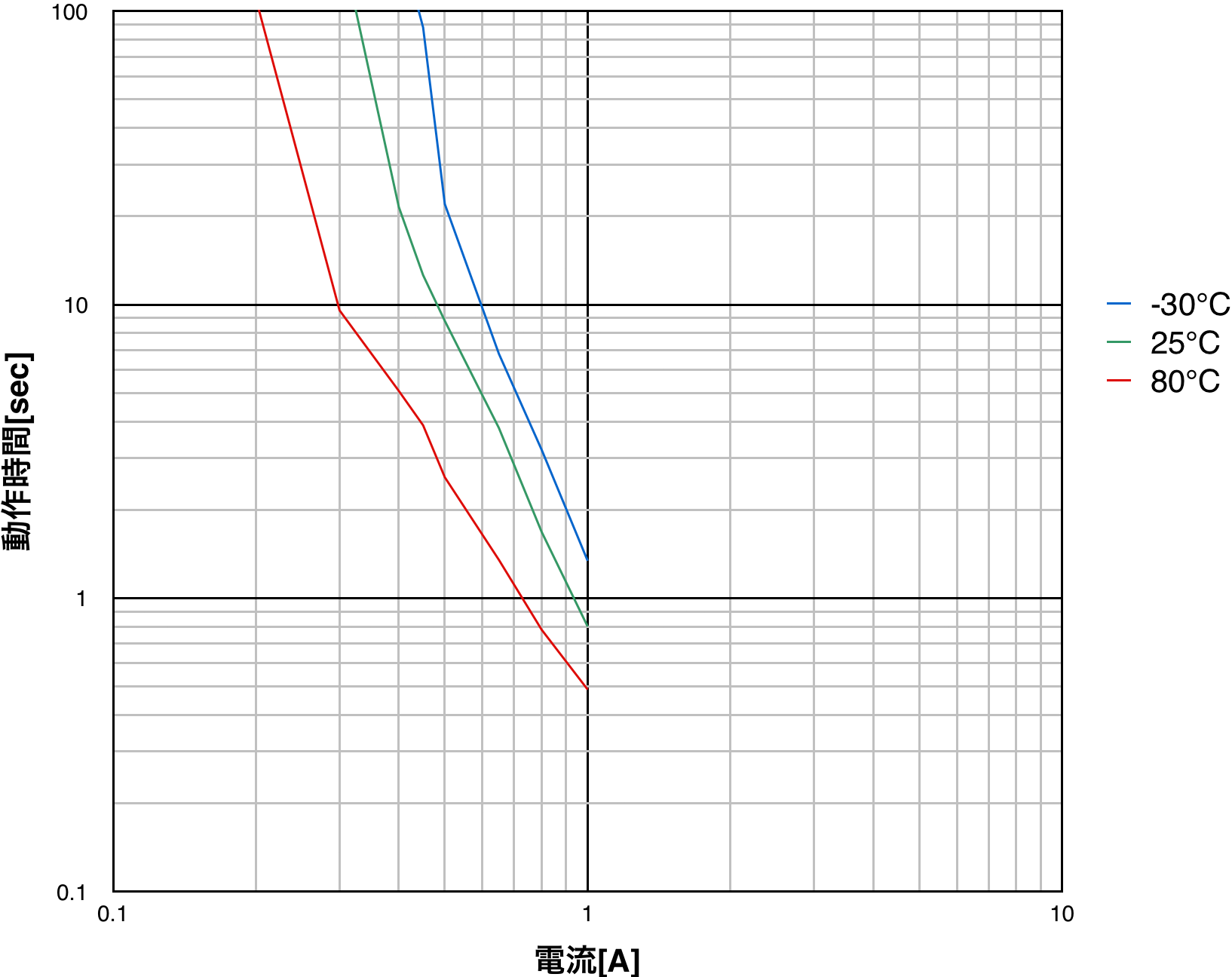

PTDD03N2-2R5M160 Operating time characteristics (typical)

PTDD03N2-1R8M160

■ Fluctuating current protection range

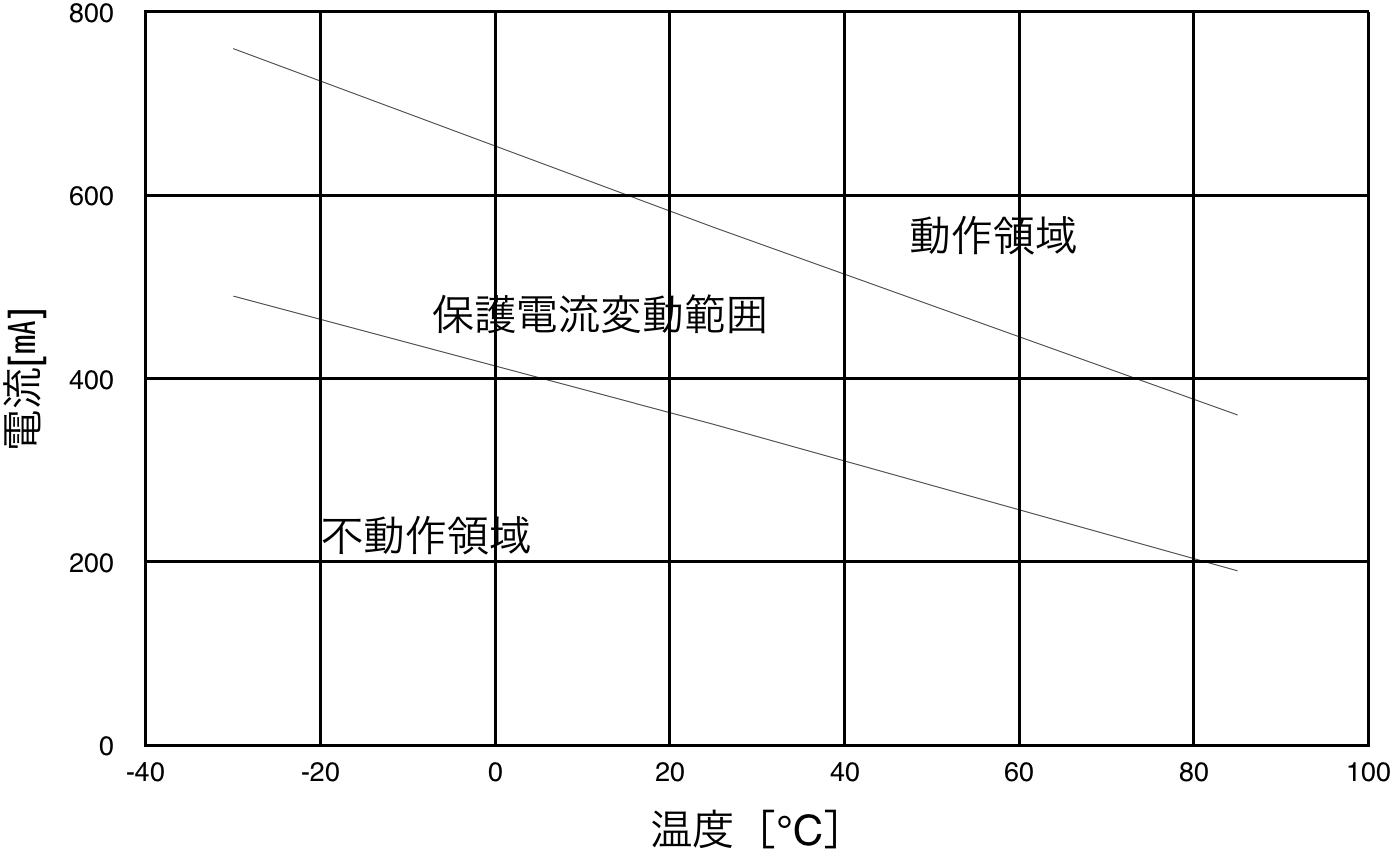

PTDD03N2-1R8M160 Fluctuating current protection range

■ Operating time characteristics (typical)

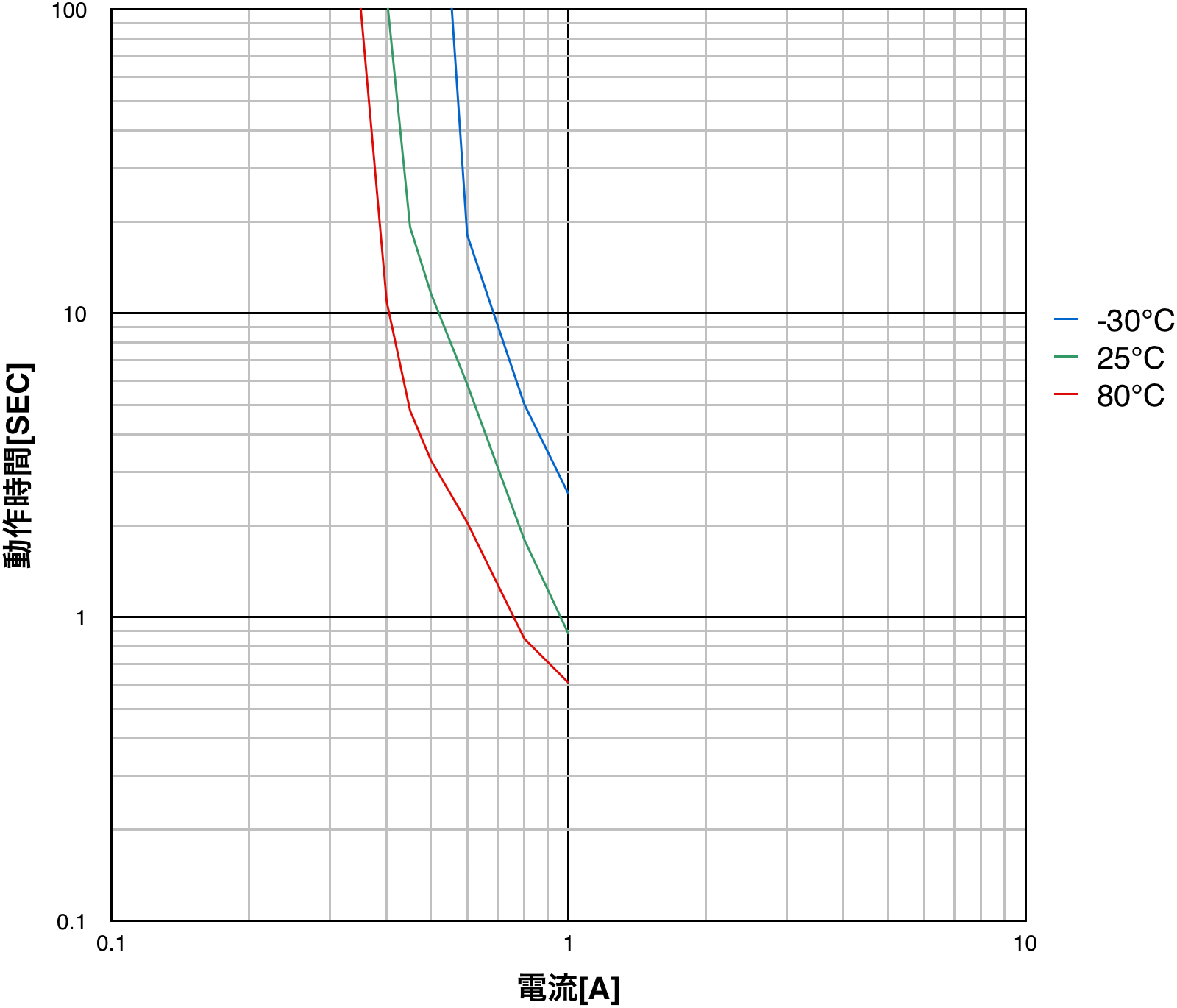

PTDD03N2-1R8M160 Operating time characteristics (typical)

PTDD05N2-1R0M160

■ Fluctuating current protection range

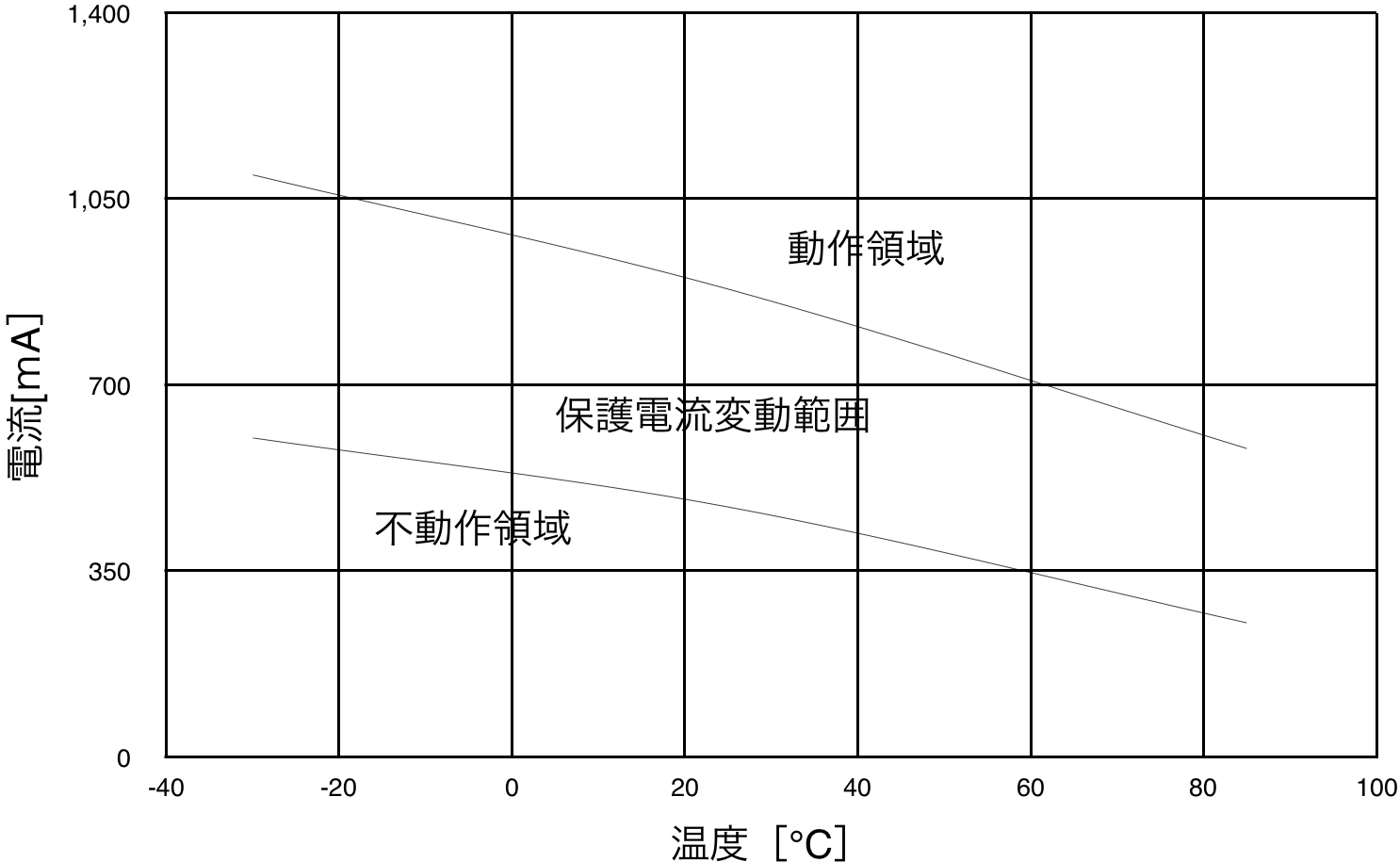

PTDD05N2-1R0M160 Fluctuating current protection range

■ Operating time characteristics (typical)

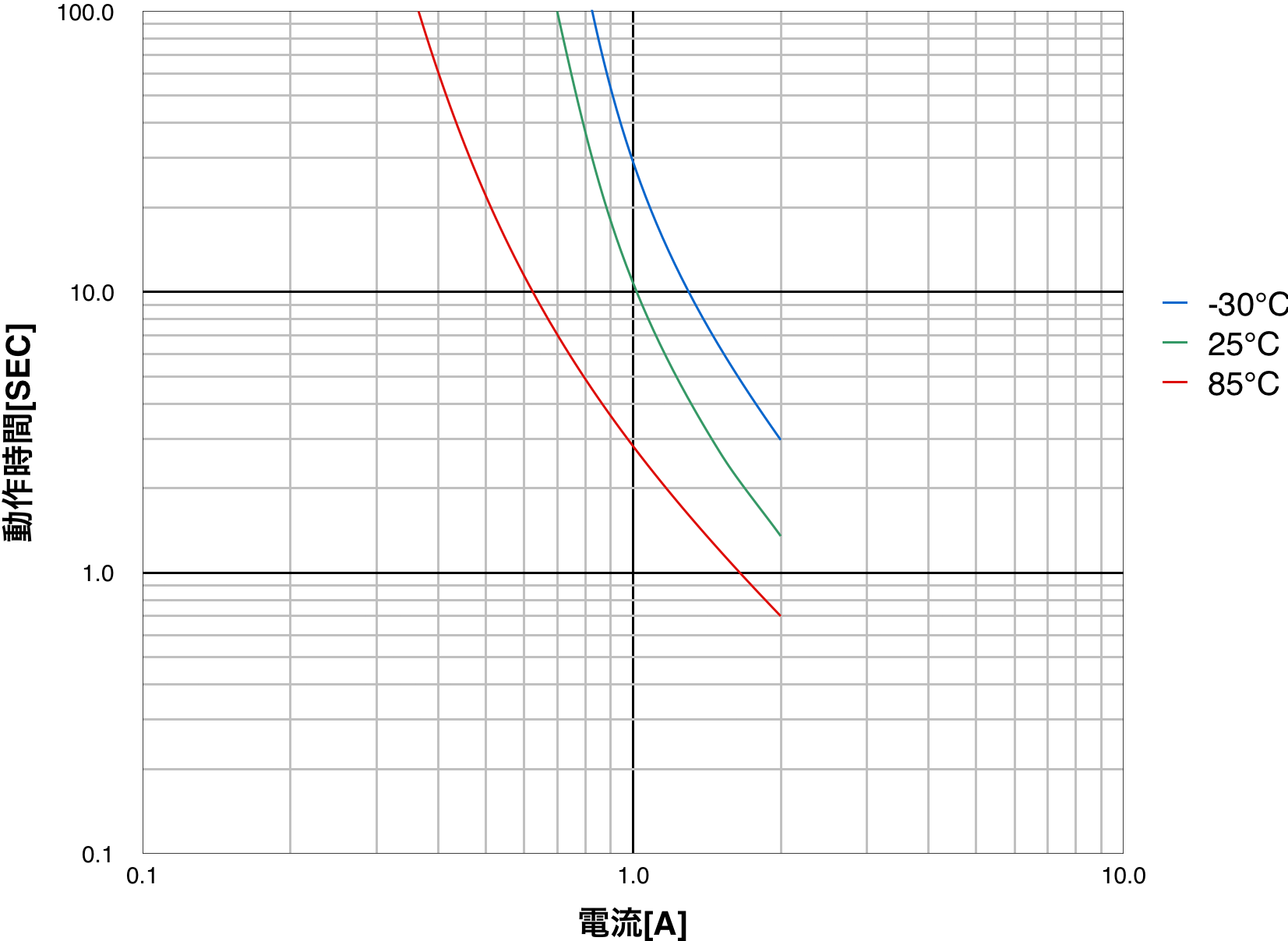

PTDD05N2-1R0M160 Operating time characteristics (typical)

PTDD06N2-0R8M160

■ Fluctuating current protection range

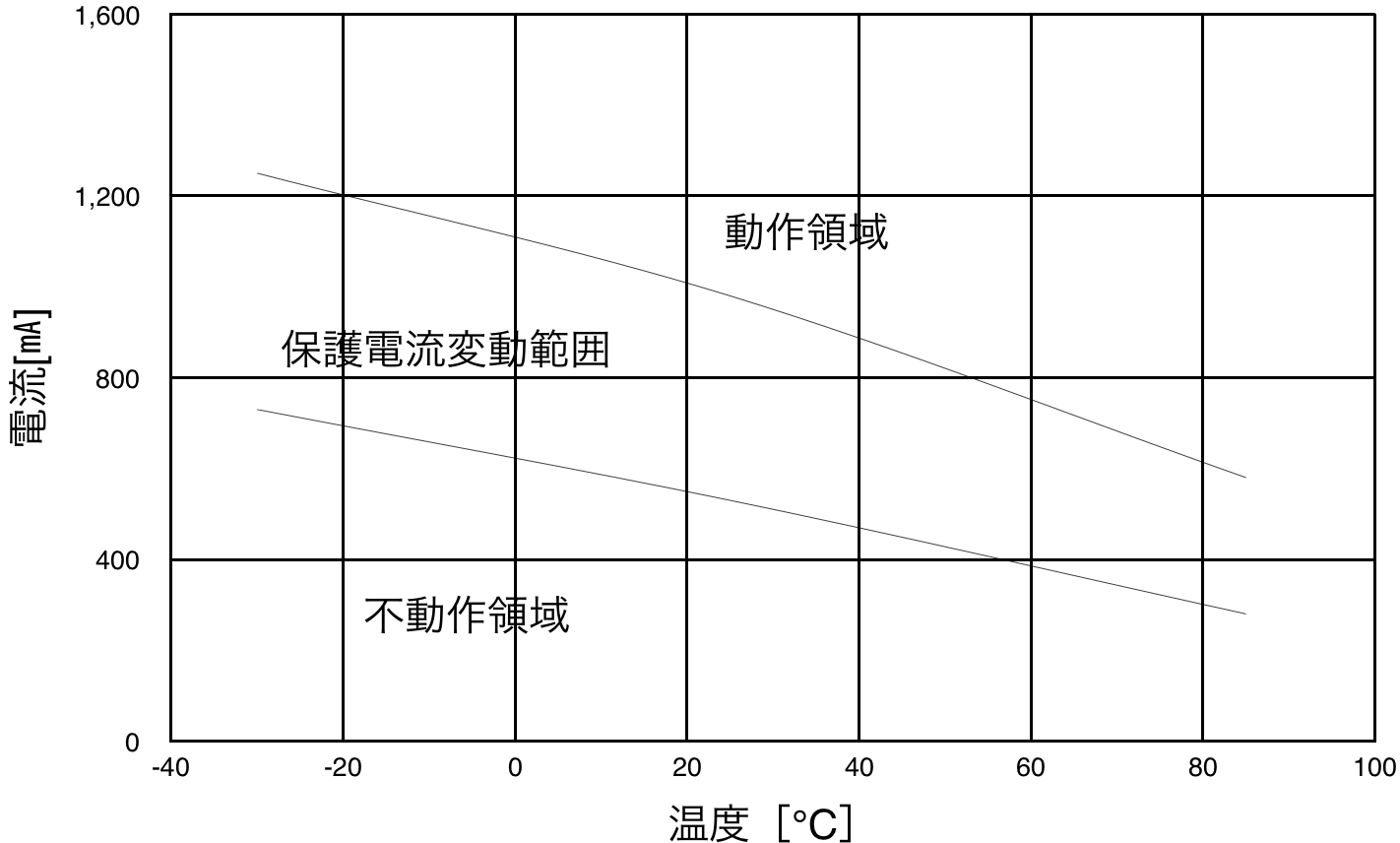

PTDD06N2-0R8M160 Fluctuating current protection range

■ Operating time characteristics (typical)

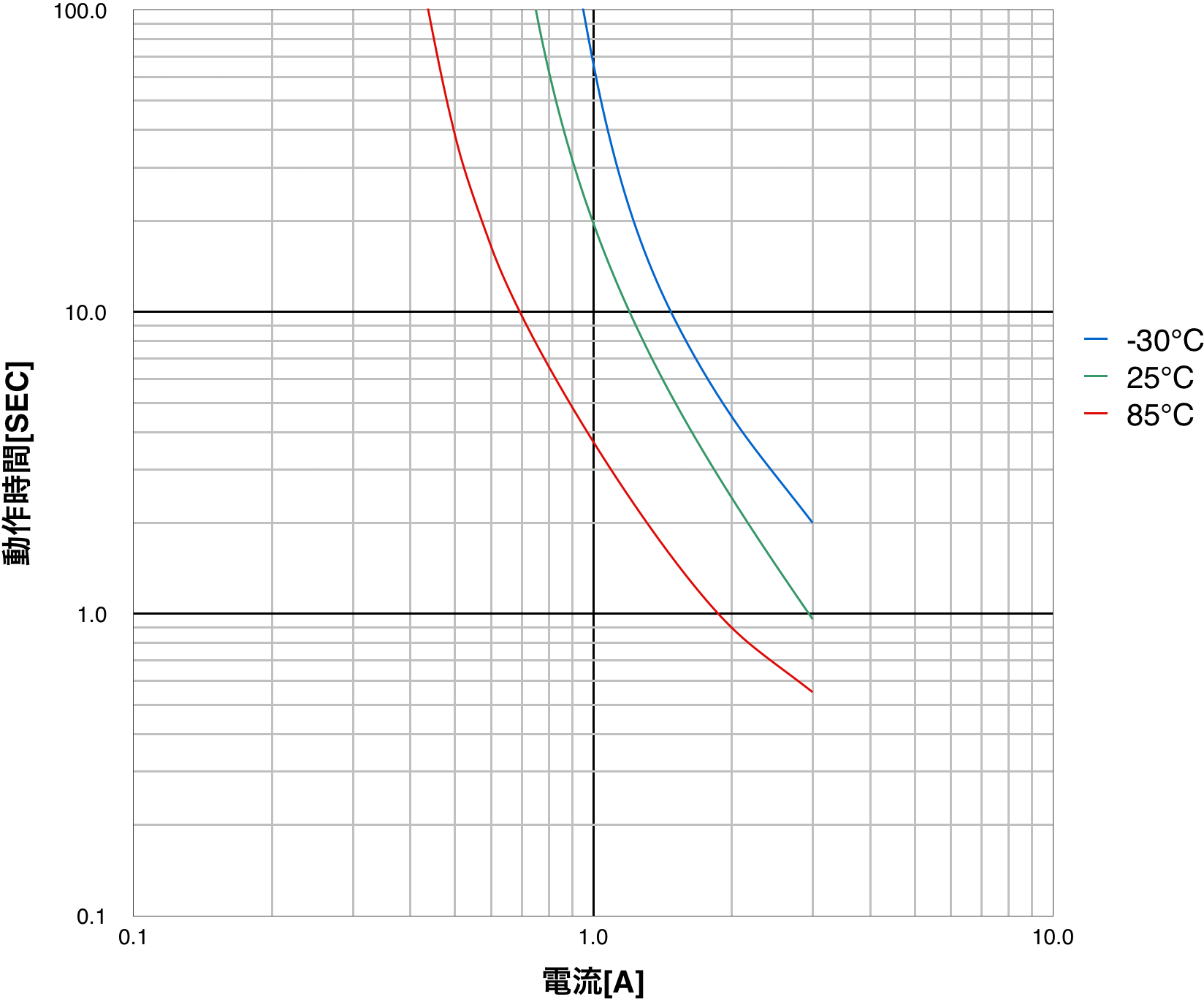

PTDD06N2-0R8M160 Operating time characteristics (typical)

PTDD07N2-R47M160

■ Fluctuating current protection range

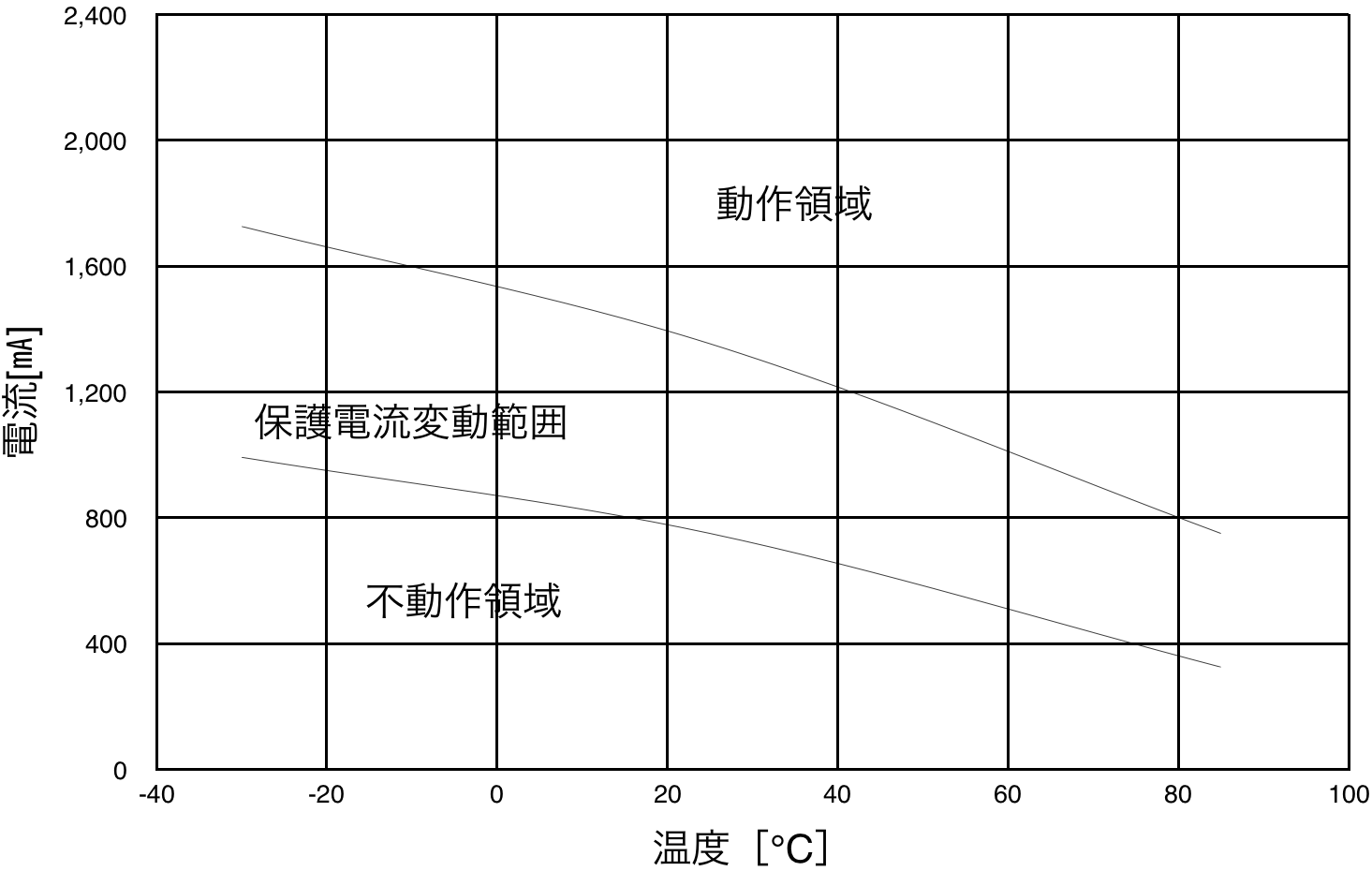

PTDD07N2-R47M160 Fluctuating current protection range

■ Operating time characteristics (typical)

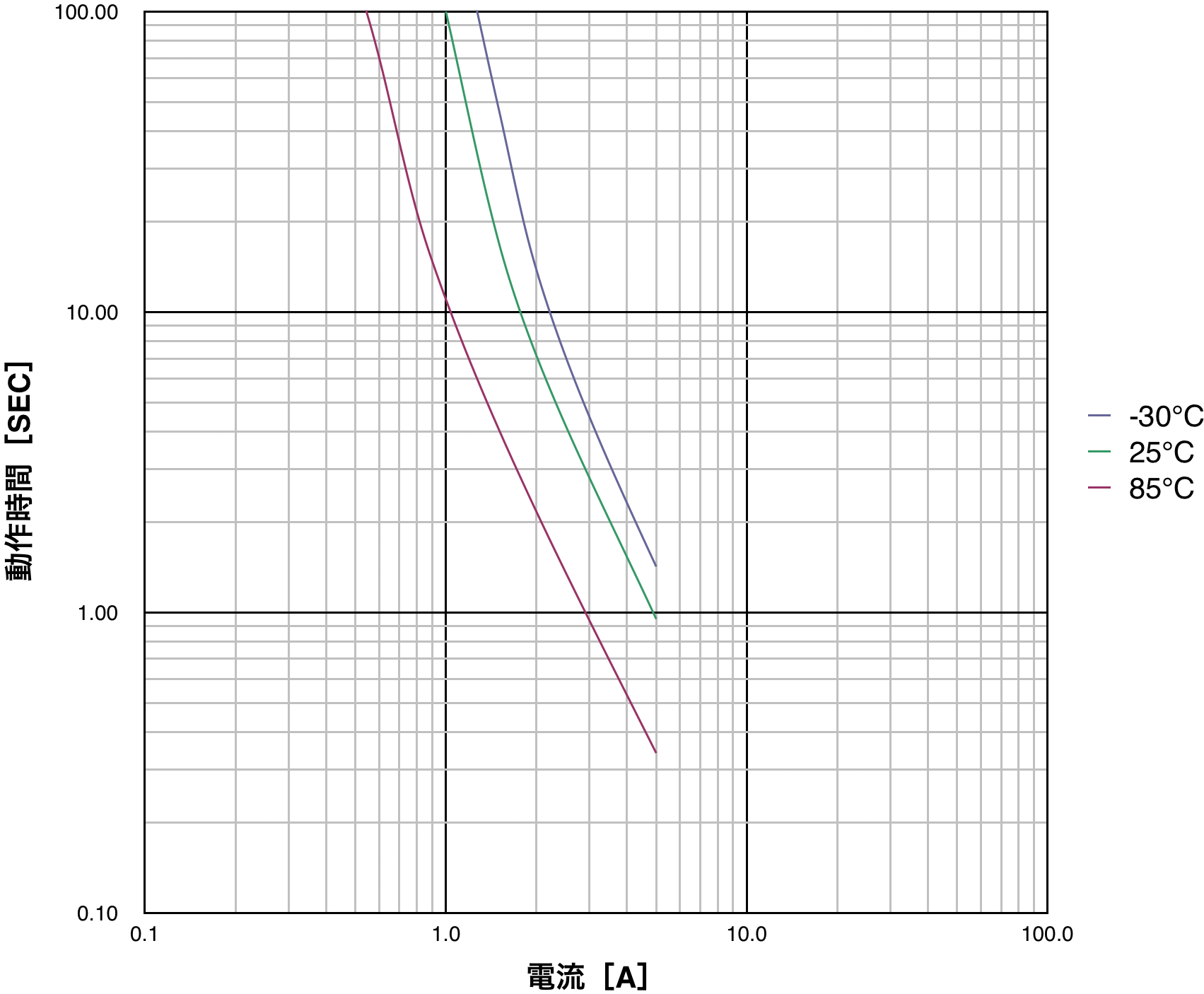

PTDD07N2-R47M160 Operating time characteristics (typical)

PTDD09N2-R33M160

■ Fluctuating current protection range

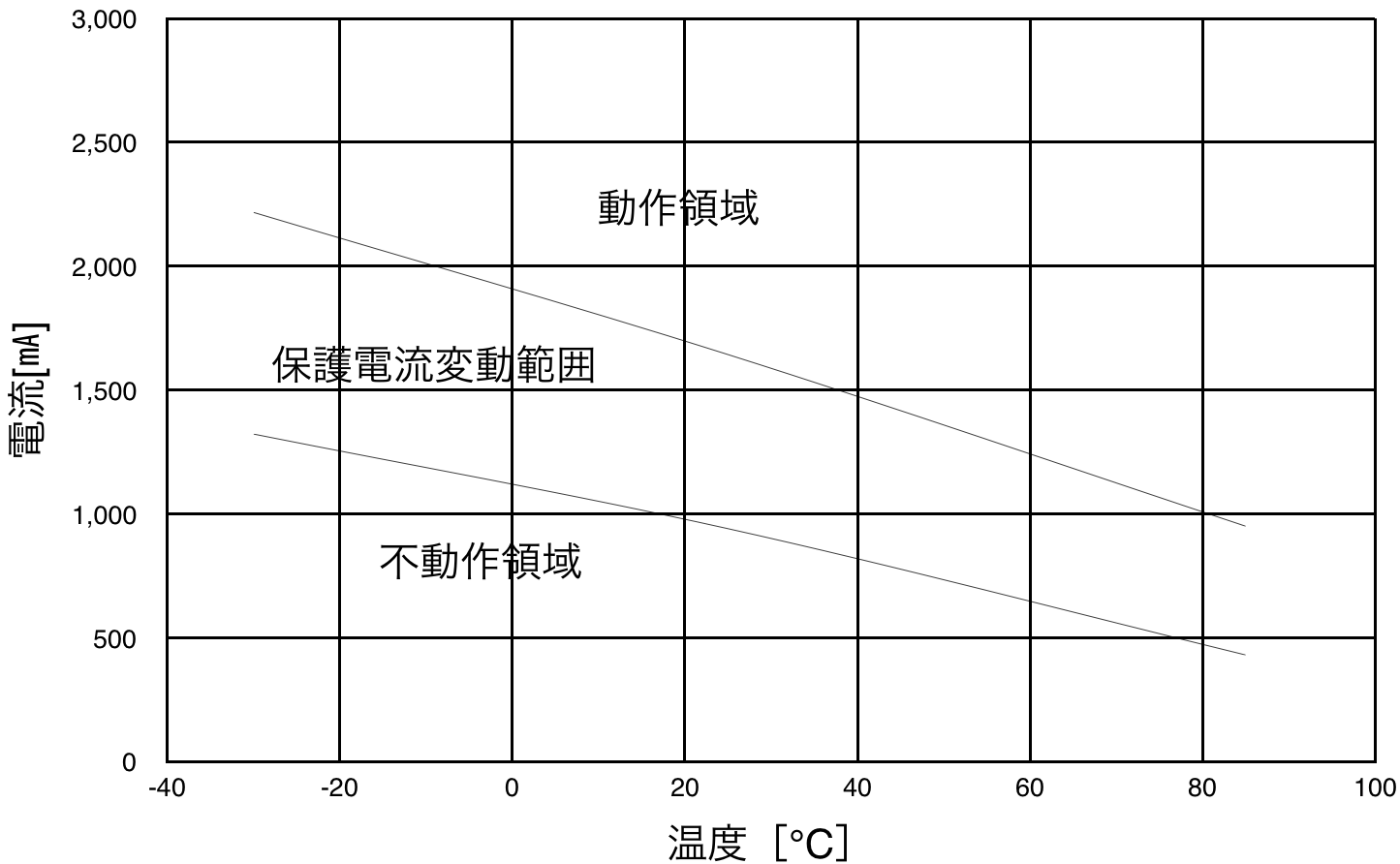

PTDD09N2-R33M160 Fluctuating current protection range

■ Operating time characteristics (typical)

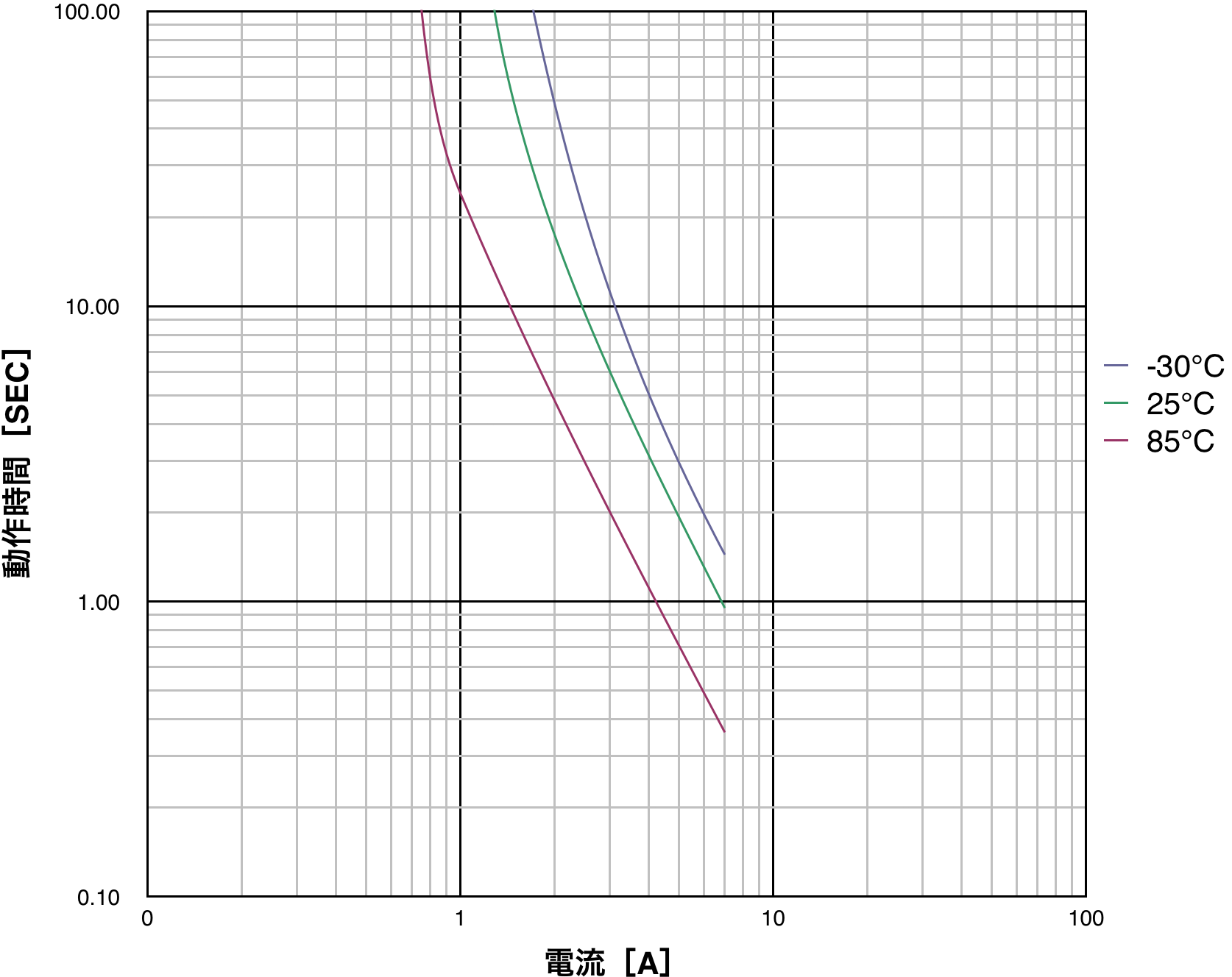

PTDD09N2-R33M160 Operating time characteristics (typical)

PTDD10N2-R27M160

■ Fluctuating current protection range

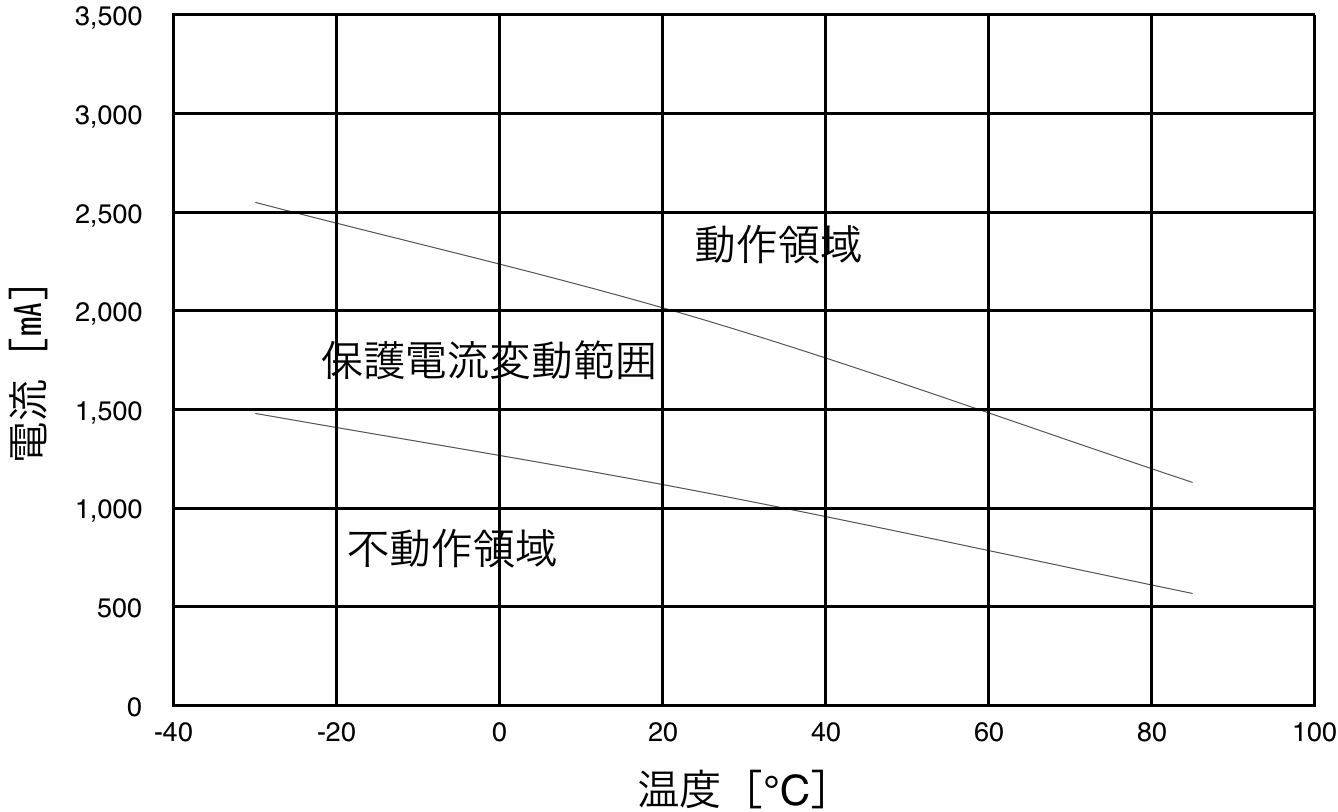

PTDD10N2-R27M160 Fluctuating current protection range

■ Operating time characteristics (typical)

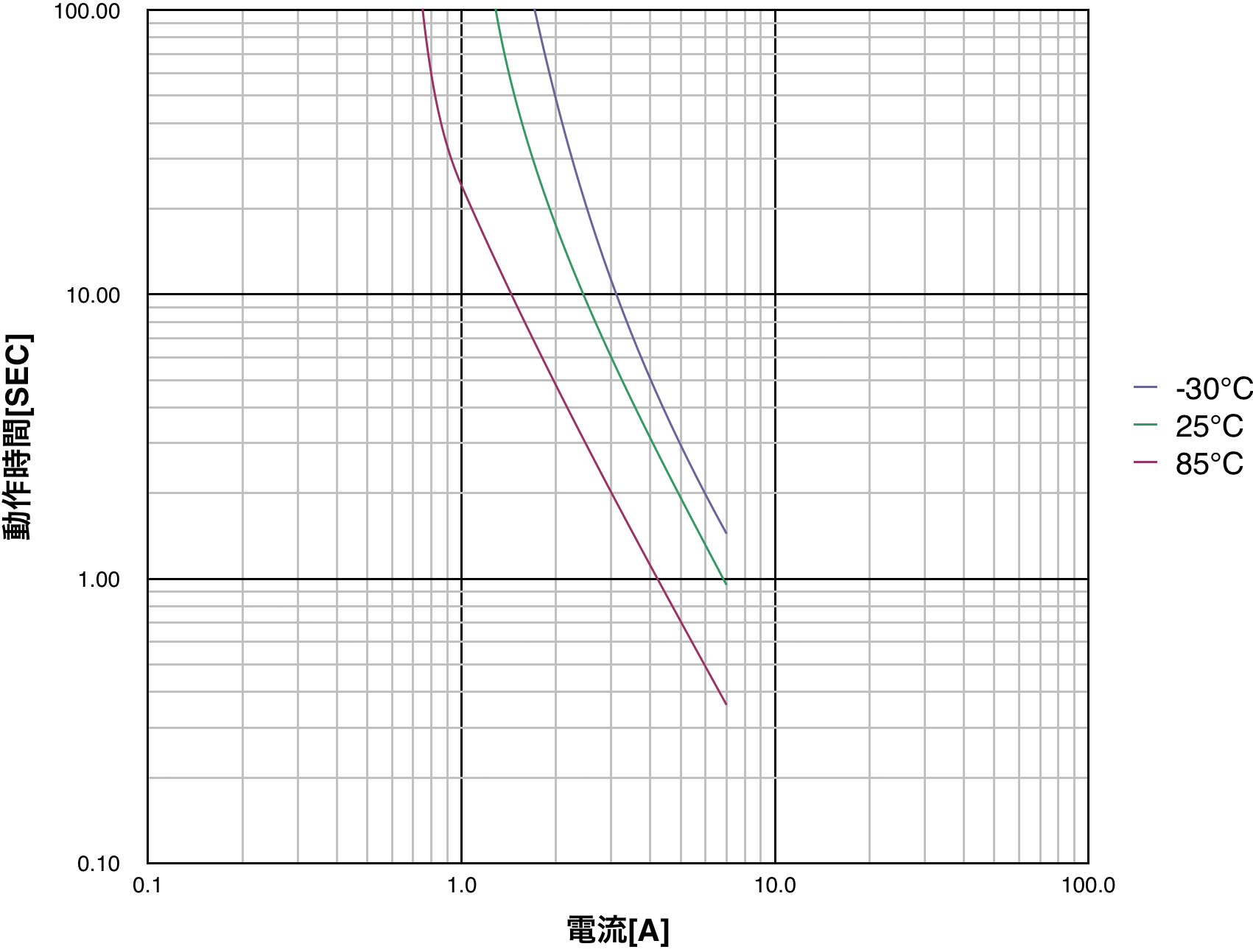

PTDD10N2-R27M160 Operating time characteristics (typical)

PTDD14N2-R15M160

■ Fluctuating current protection range

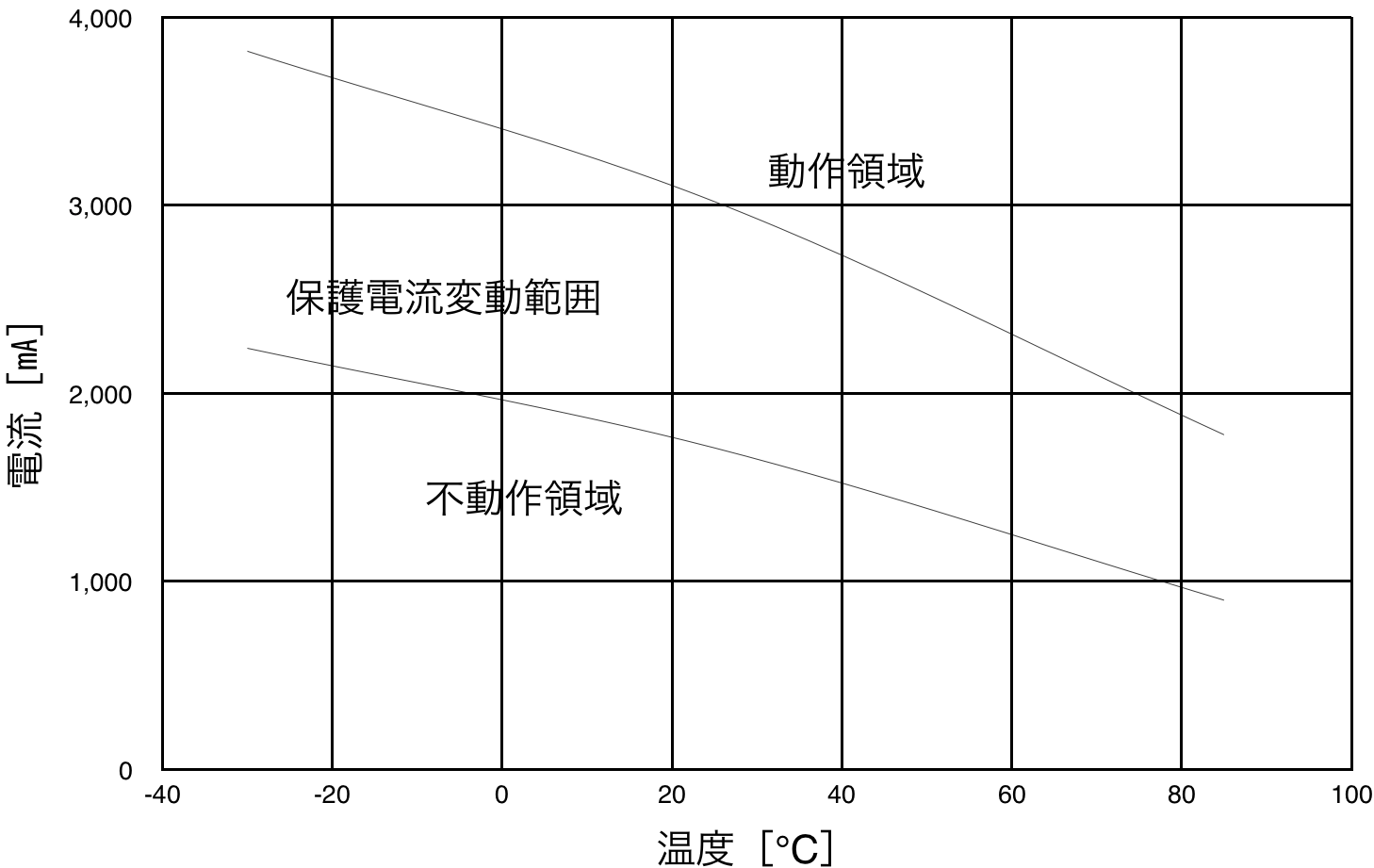

PTDD14N2-R15M160 Fluctuating current protection range

■ Operating time characteristics (typical)

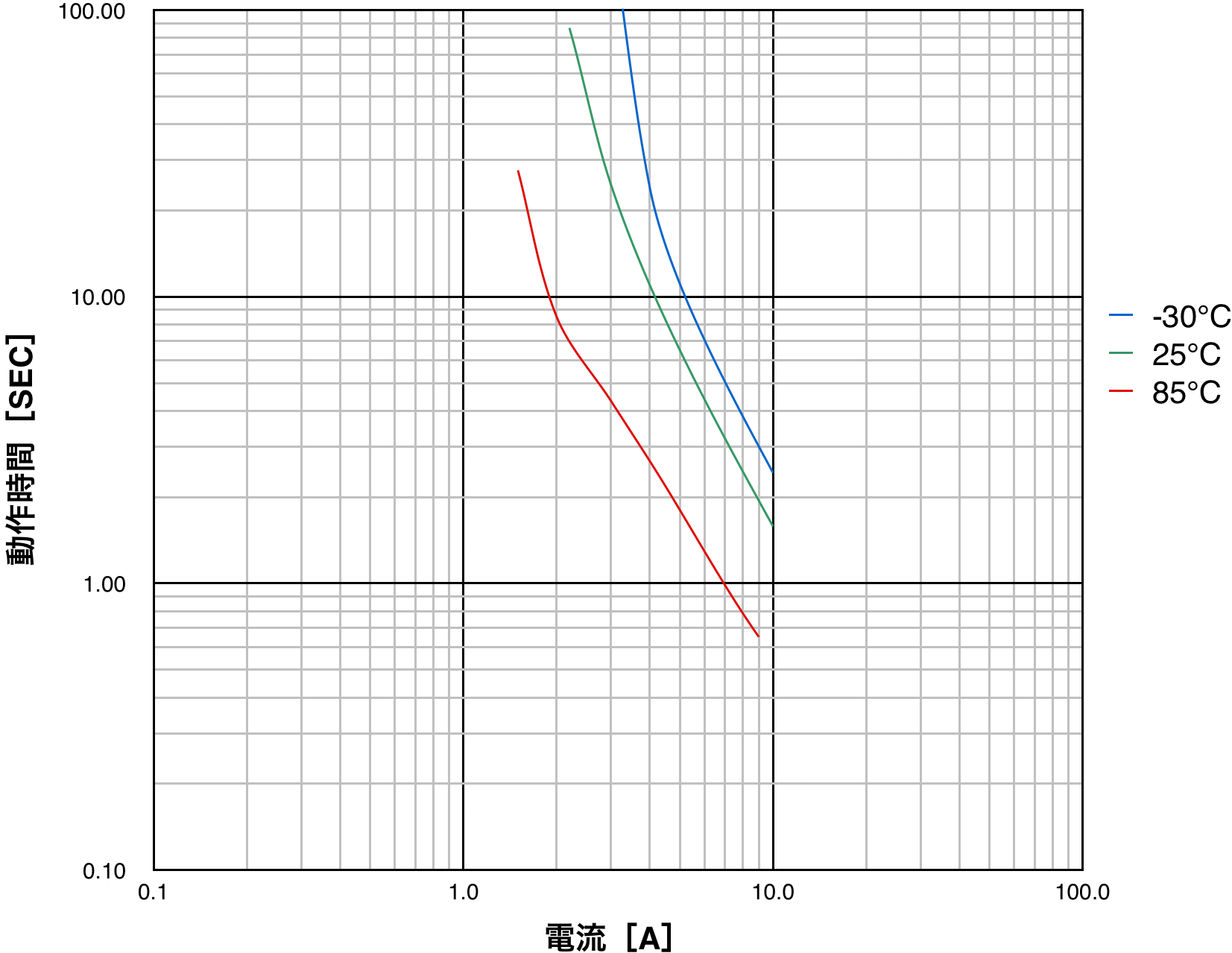

PTDD14N2-R15M160 Operating time characteristics (typical)
